FBI Appendix F, FAP 45 Certified | A800-M Dual Fingerprint Module

Aratek A800 FBI FAP 45 Dual Fingerprint Module Sensor Product Image-front Aratek A800 FBI FAP 45 Dual Fingerprint Module Sensor Product Image-side
FAP 45 Optical Dual Fingerprint Module/

A800-M

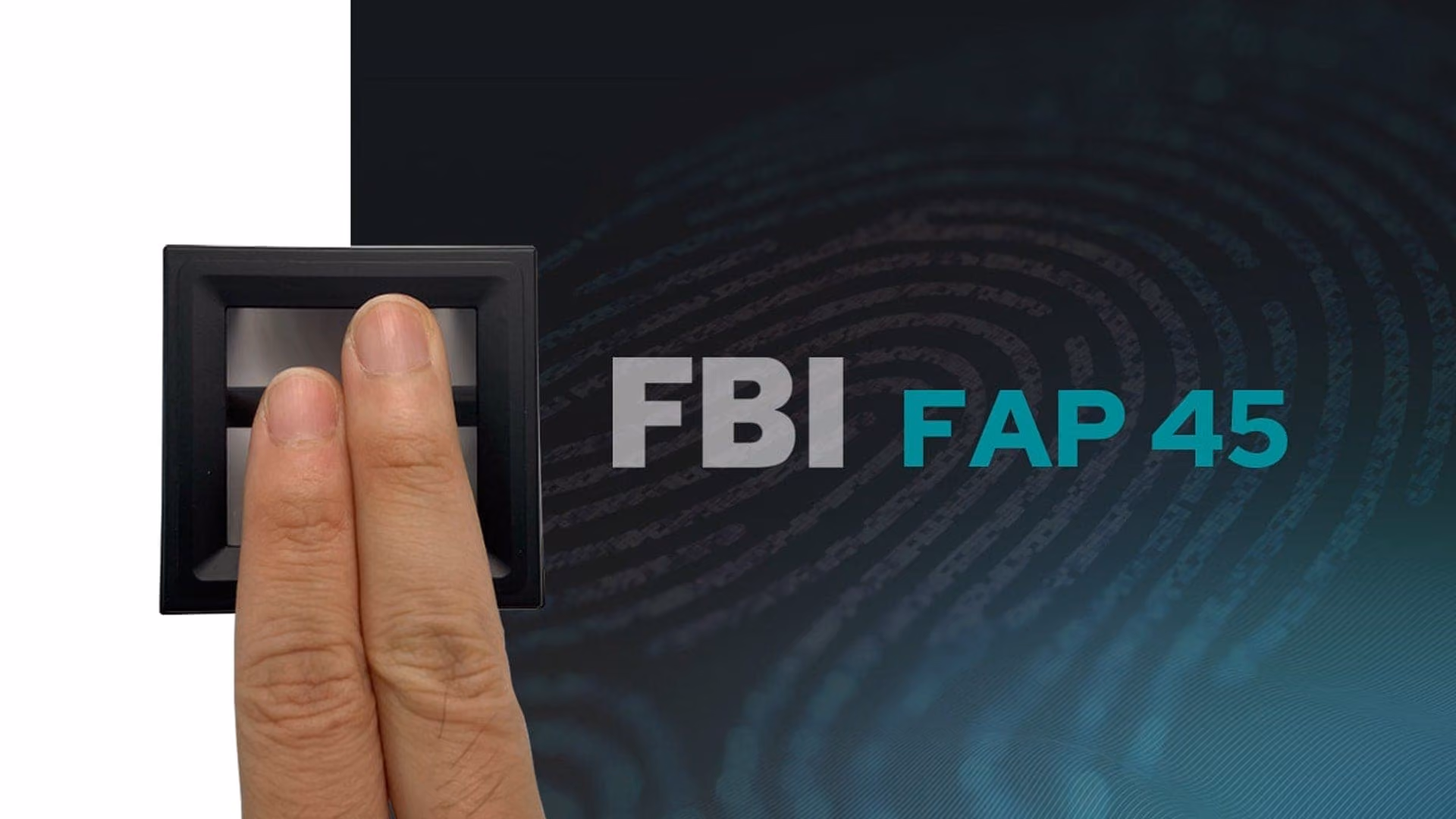

  • FBI Certified: FBI IAFIS IQS Appendix F, Mobile ID FAP 45
  • High Image Quality for Two-Finger Flats, Single Flats/Rolls
  • Live Finger Detection (LFD)

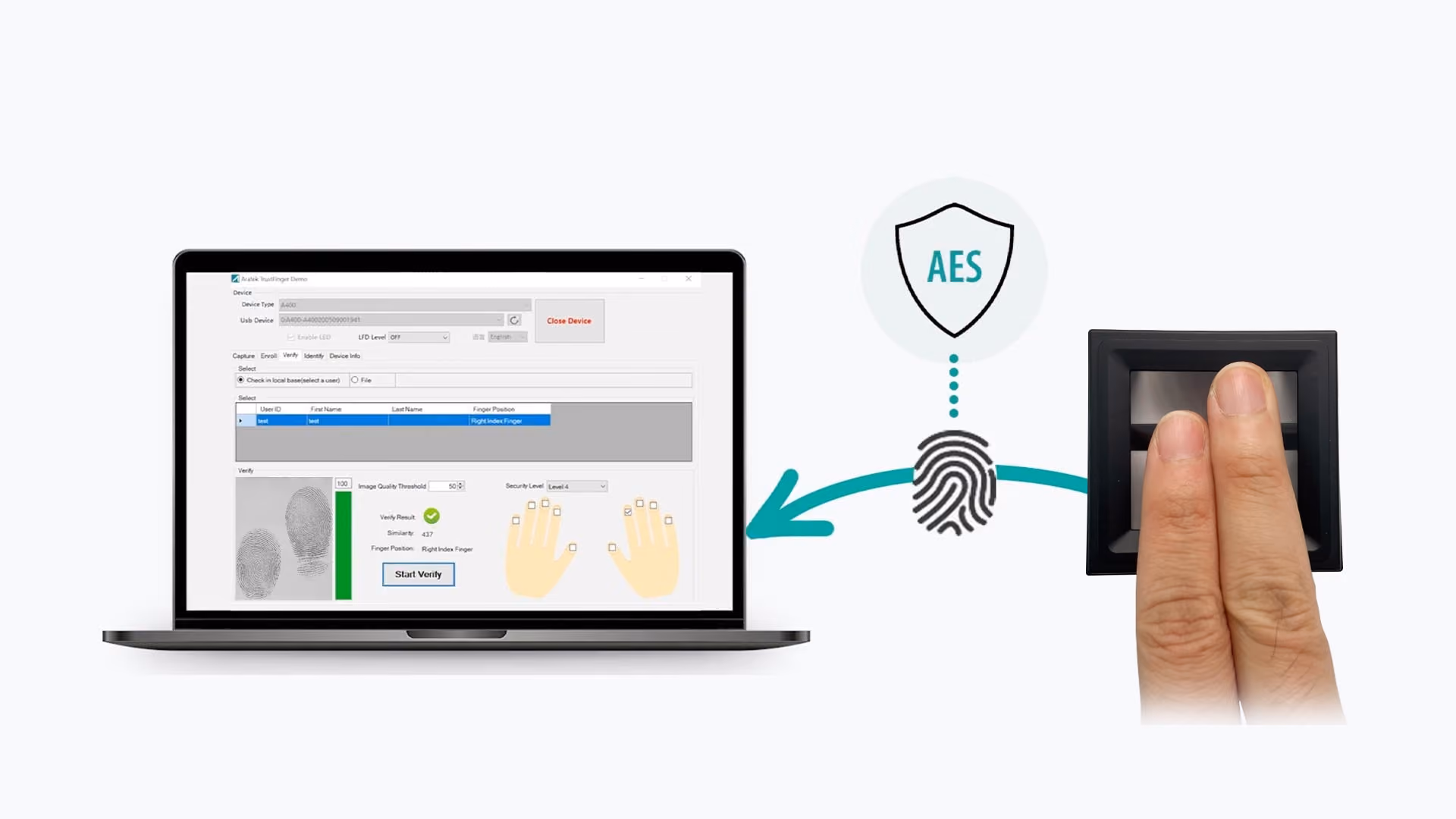

  • AES-256 Encryption
  • FIPS 201 and MINEX III compliant algorithm
  • Comprehensive SDK
  • Different OS Support
Aratek A800-M meets the stringent requirements of the FBI Appendix F (Mobile ID FAP45) standards on human fingerprint comparison. With easy integration into handhelds, mobile ID terminals, POS, kiosks and other devices, the A800-M is the perfect embedded solution for applications like National ID, Law Enforcement, Border control, Finance and Banking that require high-quality dual finger flat or single flat/roll fingerprints.

Specifications

Physical Parameter
Dimension64.0*62.0*36.5 mm (L*W*H)
Weight124.0 g
Fingerprint Capturing
Capture ModeOptical Touch
Platen Size41.0*39.0 mm
Sensing Area40.64 mm*38.10 mm
Fingerprint Image Size800*750 pixels
Image Resolution500 dpi
Gray level256 level
Operation Environment
Work Voltage5.0 V
Work Current≤200mA
TemperatureWorking: -20 ℃～55℃ / Storage: -40 ℃～70℃
Humidity10 ~ 93% R.H
Communication Mode
InterfaceUSB
Certifications
CE, FCC, RoHS, FBI Appendix F (Mobile ID FAP 45)
Supported OS
Windows / Android / Linux / Others
