What is a Machine Readable Zone (MRZ) and Why is It Vital?

Biometric Post
May 13, 2024
This is some text inside of a div block.
Biometric Post
What is a Machine Readable Zone (MRZ) and Why is It Vital?

Every time you hand over your passport at an airport or border, a small, seemingly mundane area packed with alphanumeric characters plays a critical role in your journey. This area, known as the Machine Readable Zone (MRZ), is a critical element in the design of modern travel and identity documents. Found on e-passports (biometric passports), national ID cards, and other official documents, the MRZ facilitates a swift and secure identity verification process that is vital for international travel and border control.

But what exactly is an MRZ, and why has it become an important feature of our travel documents? This article digs into the complexities of MRZ, exploring its functionality, importance, and the technology that powers them, including their synergistic relationship with biometrics.

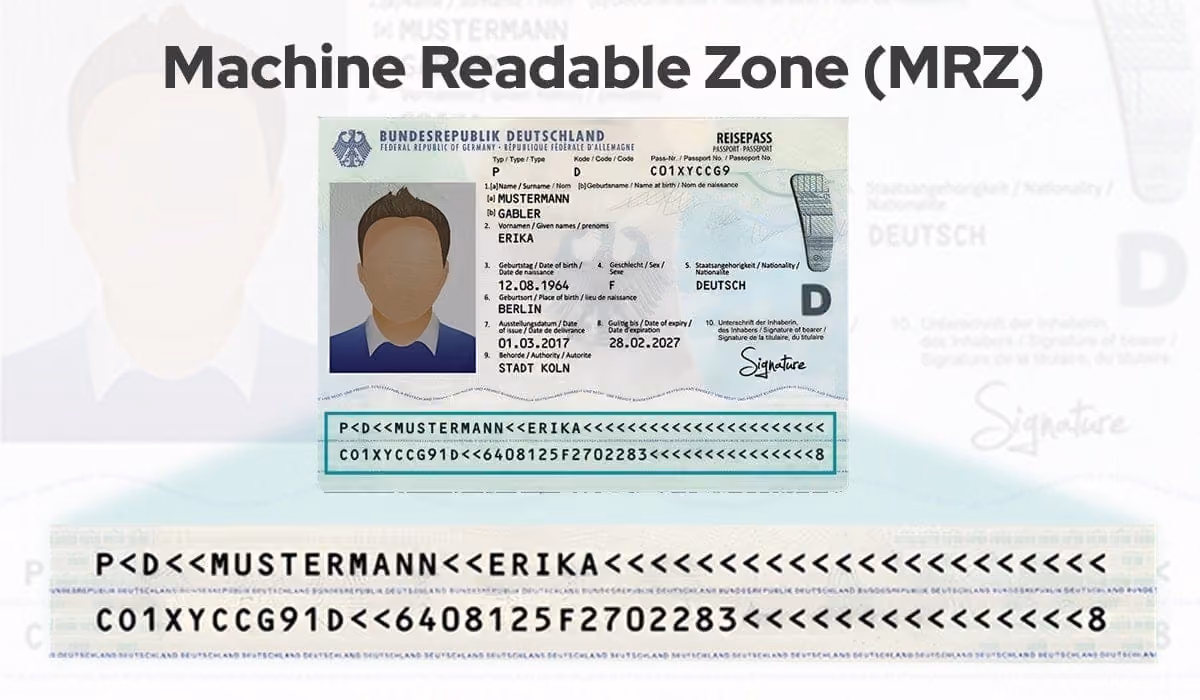

What is a Machine Readable Zone (MRZ)?

A Machine Readable Zone, or MRZ, is a specialized area on many identity documents designed to be read by machine. This feature appears on various official documents, such as e-passports (machine-readable passport "MRP"), identity cards, and even driving license.

Examples of MRZ and MRZ code with an ID Card on Top and a Bangladesh ePassport on the Bottom
Examples of MRZ and MRZ code

MRZ consists of two or three lines of alphanumeric text (MRZ code) encoded in a standardized format, facilitating rapid and accurate data extraction by optical character recognition (OCR) systems, streamlining the process of checking and verifying a document holder's details. The MRZ-based documents are crucial for enhancing the speed and security of identity verification processes, particularly in contexts like international travel and border control.

3 Types of Machine Readable Zones

The Machine Readable Zone (MRZ) plays a crucial role in the swift and accurate verification of identity documents through optical recognition systems. Consisting of a specially encoded section using the standardized OCR-B font, the MRZ enhances the machine-readability of alphanumeric characters.

Found typically at the bottom of the identity page in passports or on the reverse side of an ID card, the MRZ’s strategic placement optimizes accessibility for scanning devices. This introduction will lead into an exploration of the three primary types of MRZs, each tailored to specific document formats and information requirements.

1) Type 1 MRZ (TD1 Travel Documents): ID Cards

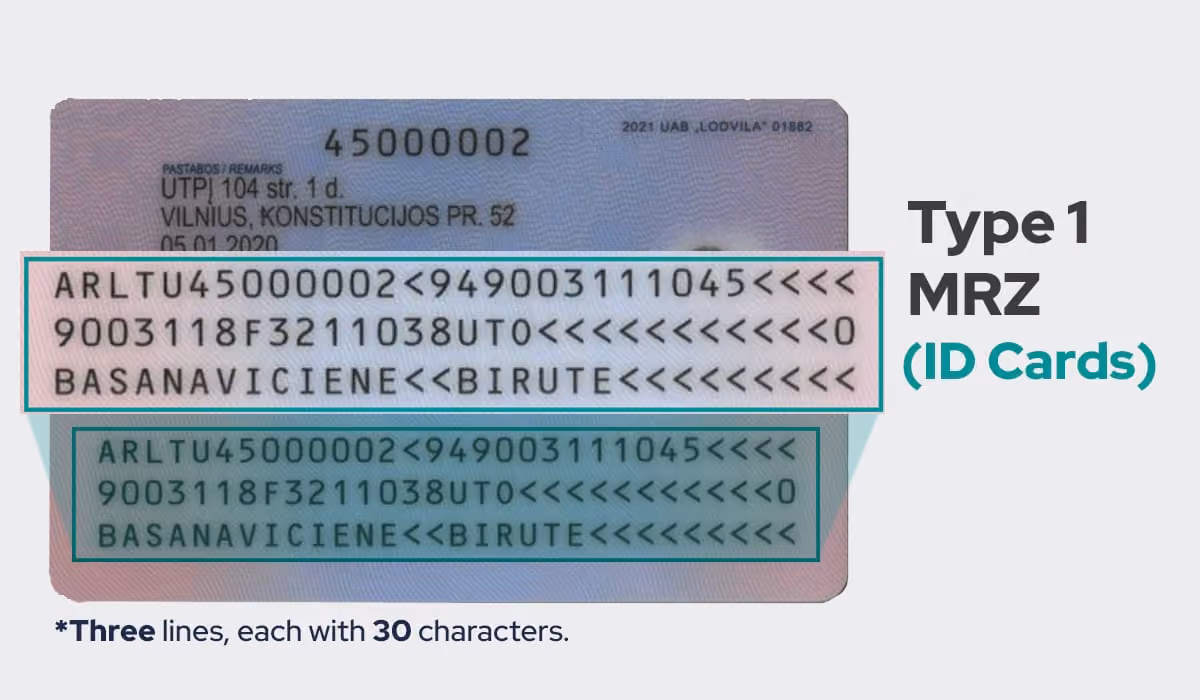

Type 1 MRZ (TD1 Travel Documents) for ID Cards
Type 1 MRZ (TD1) for ID Cards

Often found on national ID cards, this format features three lines, each containing 30 characters, accommodating a broader array of information tailored to national requirements.

2) Type 2 MRZ (TD2 Travel Documents)

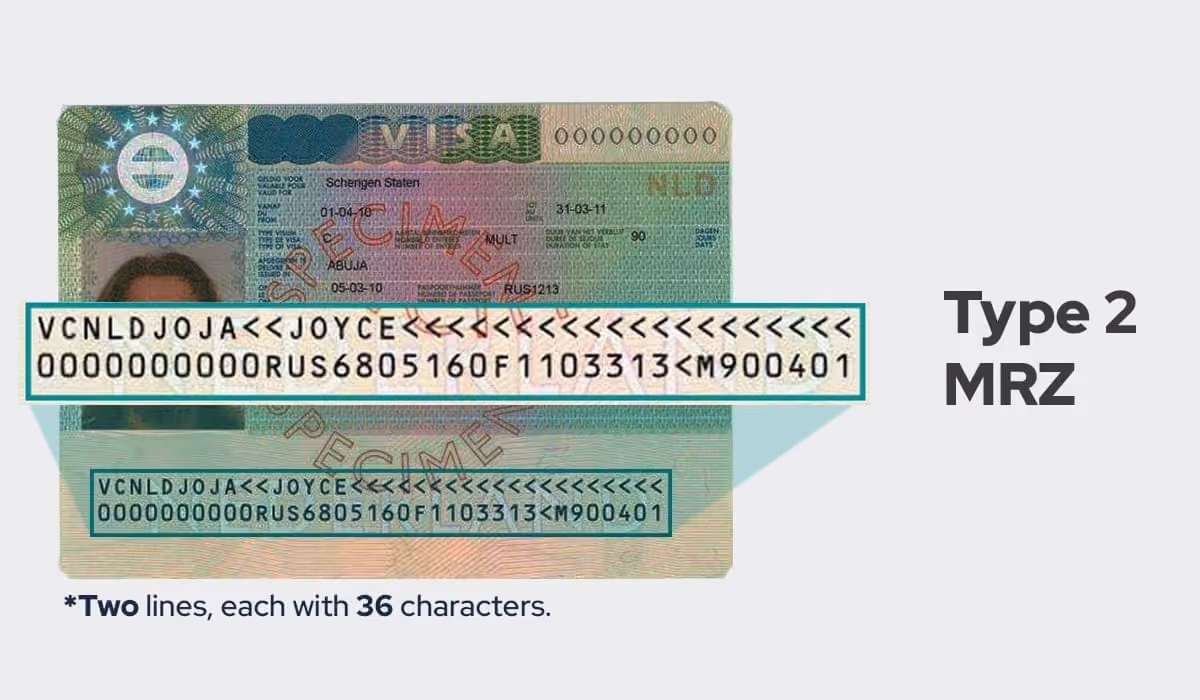

Type 2 MRZ (TD2 Travel Documents)
Type 2 MRZ (TD2), Schengen Visa as an Example

Less commonly used, this format includes two lines, each with 36 characters, providing a middle ground in data capacity. Travel Documents

3) Type 3 MRZ (TD3 Travel Documents): Machine-Readable Passport (MRP)

Type 3 MRZ (TD3 Travel Documents) for a Machine-Readable Passport (MRP)
Type 3 MRZ (TD3) for a Machine-Readable Passport (MRP)

In the realm of international travel, passports typically incorporate a Type 3 MRZ, which adhere to the International Civil Aviation Organization (ICAO) Document 9303 specifications. A standard passport MRZ includes two lines, each containing 44 characters, structured as follows:

  • First Line:
    • Type: Identifies the type of travel document (P for passport).
    • Country Code: ISO 3166-1 alpha-3 country code of the issuing country.
    • Surname and Given Names: The bearer’s surname followed by two chevrons (<<) and then the given names.

  • Second Line:
    • Passport Number followed by a check digit.
    • Nationality Code (also based on ISO 3166-1 alpha-3).
    • Date of Birth followed by a check digit.
    • Gender: Male (M), Female (F), or Non-specified (X), followed by a check digit.
    • Passport Expiry Date followed by a check digit.
    • Personal Number (optional and country-dependent) followed by a check digit.
    • Final Check Digit: Covering numbers and check digits from positions 1 to 10 and 14 to 20 in the second line.

The three types of MRZs — Type 1 (TD1), Type 2 (TD2), and Type 3 (TD3) — each serve distinct roles in identity documentation, adhering to ICAO's Document 9303 and ISO/IEC standards.These standards ensures that MRZs adhere to a high level of specification, aiding in their widespread use and acceptance in the global landscape of travel and identity verification. Collectively, these three types of MRZs enhance the security and efficiency of identity verification processes, playing a crucial role in both national and international contexts.

How Does MRZ Scanning Work?

The Machine Readable Zone (MRZ) scanning process is a critical component in document verification systems, particularly at international borders and entry points. This procedure involves sophisticated technologies that capture, read, and verify data (MRZ code) from the MRZ to ensure document authenticity and validate the holder's identity.

Here’s a detailed look at the steps involved, using the example of a passport check:

1) Document Presentation:

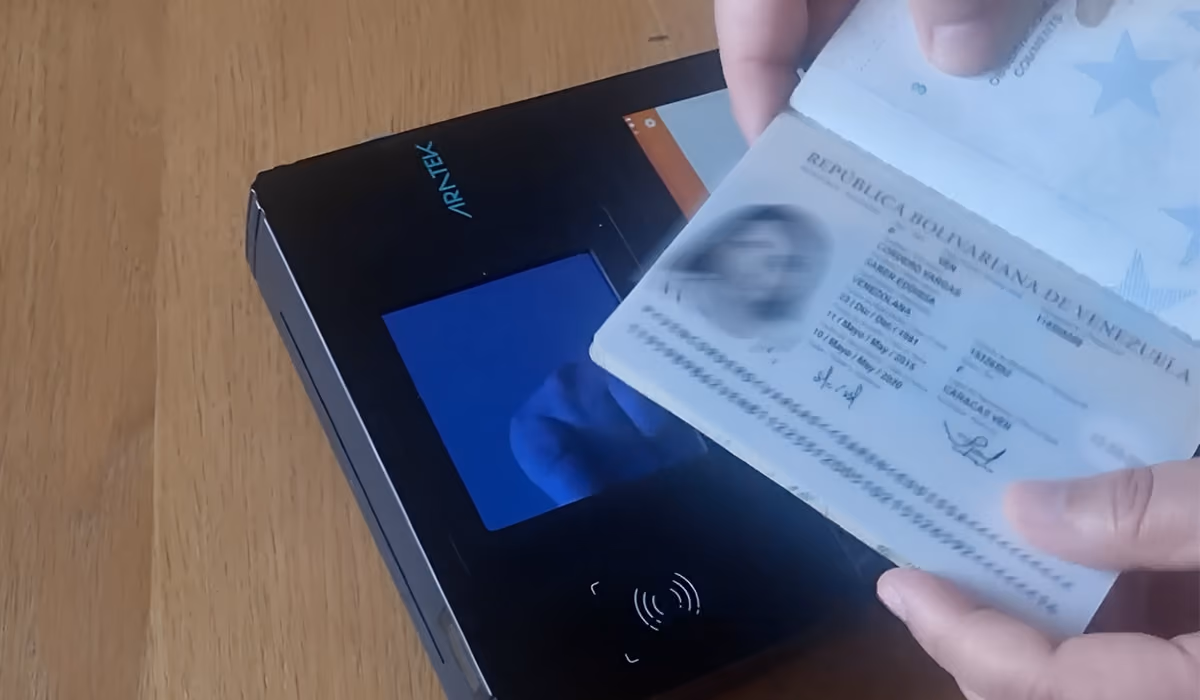

MRZ Scanning Step 1: Document Presentation (an e-Passport) and Ready for Scanning with an Aratek Biometric Tablet
MRZ Scanning Step 1: Document Presentation (w/ an e-Passport)

The traveler presents their passport to the border control authority. The passport's MRZ, usually located at the bottom of the identity page or on the reverse side of the card, is presented to a scanning device.

  • Technology Utilized: MRZ scanners employ either direct optical imaging or tactile reading mechanisms to capture the MRZ. These devices might include traditional flatbed scanners, handheld swipe scanners, or advanced imaging systems equipped with specific illumination to enhance the clarity of the MRZ's OCR-B characters.

2) MRZ Scanning & Optical Character Recognition (OCR):

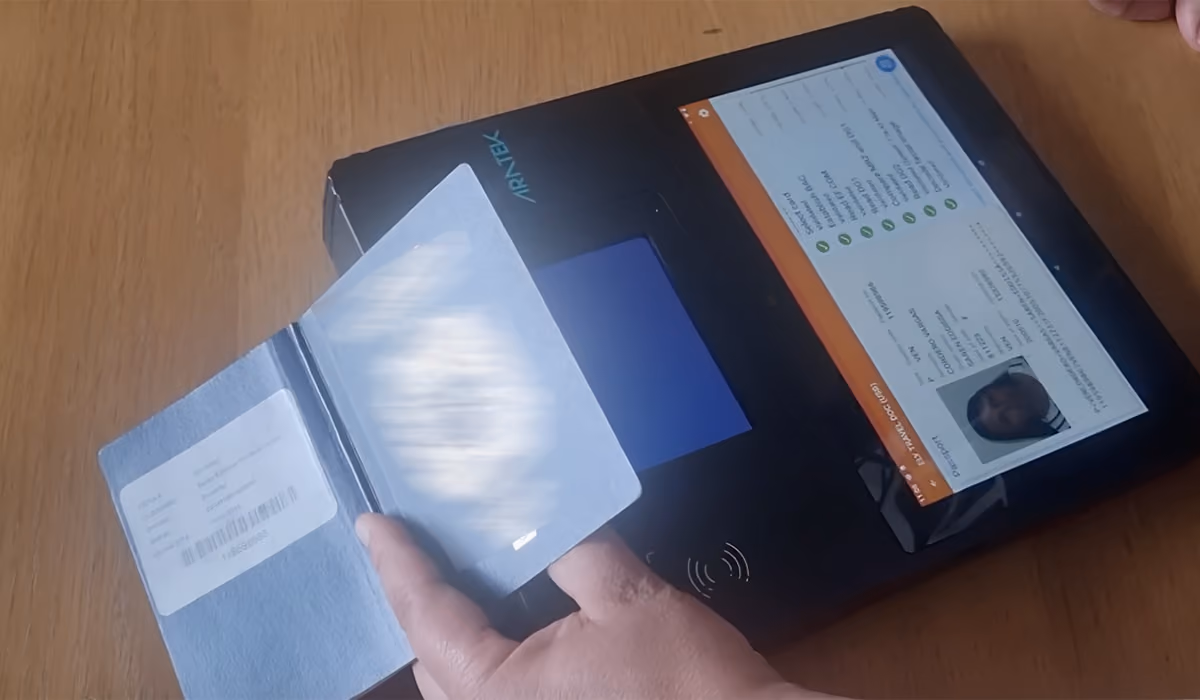

MRZ Scanning Step 2: Passport MRZ Scanning & Optical Character Recognition (OCR) by Aratek Biometric Tablet's MRZ Scanner
Passport MRZ Scanning & Optical Character Recognition (OCR)

Once the MRZ is captured, OCR technology converts the characters into digital text. This text is crucial for the subsequent verification steps.

  • Integration: Specialized OCR software is fine-tuned to decipher the specific font used in MRZs, ensuring high accuracy in character recognition.

3) Data Extraction and Validation:

The scanner extracts personal data from the MRZ, such as document number, country code, birth date, and expiration date.

  • Check Digit Verification: Each segment of the MRZ that contains a check digit is validated by recalculating the check digit based on the extracted data and comparing it with the check digit encoded in the MRZ. This step confirms the data's integrity, indicating any alterations or errors.

4) Data Comparison and Biometric Verification:

Extracted and verified data is then cross-checked against databases containing traveler information or watchlists to validate the document's legitimacy and the traveler's status.

  • Biometric Integration: When biometric verification is required, the MRZ data is used to unlock and access the biometric data embedded in the chip within the document (e.g., e-passports). This biometric data, which may include digital photographs, fingerprints, or iris scans, is then verified against the live biometrics provided by the individual at the checkpoint. This process ensures the presenter of the document is its legitimate owner.

  • Mobile Biometrics and Biometric Handheld Terminals: In environments where mobility and rapid verification are paramount, handheld biometric terminals are particularly useful. These devices can scan the MRZ, access the document’s chip to retrieve biometric data, and perform live biometric checks—all in one compact, portable unit. This capability is ideal for mobile checkpoints, field operations, or any scenario where traditional fixed scanning setups are impractical.

Advanced Security Features in MRZ Technology

MRZ scanning incorporates multiple layers of technology to enhance security and prevent fraudulent activities:

  • Complex Check Digit Algorithms: The use of sophisticated algorithms to calculate check digits adds a critical layer of security, enabling the detection of tampered or manipulated data in the MRZ.
  • Cryptographic Techniques: Advanced cryptographic methods protect the data's confidentiality and integrity as it moves from the scanner to the verification systems, preventing interception or falsification.
  • Tamper Detection and Anomaly Alerts: Modern MRZ scanners are equipped with algorithms capable of identifying signs of tampering or inconsistencies in the MRZ, alerting security personnel to potential forgeries.
  • Machine Learning Integration: Machine learning algorithms are increasingly being integrated into MRZ scanning systems. These algorithms improve over time, learning from vast datasets to better detect anomalies, recognize patterns in fraudulent documents, and enhance the overall reliability and speed of the MRZ verification process.

By integrating these technologies, MRZ scanning systems provide a robust mechanism for verifying travel and identity documents, ensuring that the verification process is not only efficient but also secure and reliable. This comprehensive approach plays a crucial role in maintaining the integrity of identity verification processes worldwide.

How is Biometric Integration Enhancing MRZ Verification?

The integration of biometric technologies with Machine Readable Zone (MRZ) systems has significantly enhanced the security and efficiency of document verification processes at international borders and beyond. This synergy provides a more robust framework for confirming identities, offering both increased accuracy and speed. Let's explore the benefits and key processes that highlight how biometric integration is amplifying the capabilities of MRZ verification.

The Role of Biometric Data in MRZ Verification

Biometric integration with MRZ verification involves a series of sophisticated steps that ensure the security and authenticity of identity documents, such as biometric passports. Here’s how it unfolds in real-world scenarios:

  • Embedded Chip Access: Biometric passports and similar documents utilize MRZ as a gateway to access encrypted biometric data stored on an embedded NFC or RFID chip. This advanced security feature ensures that sensitive data, such as facial images, fingerprints, or iris patterns, remains protected from unauthorized access.
  • Matching Process: The real-time biometric data captured at checkpoints is matched against the profiles stored on the chip. This verification is crucial for detecting any discrepancies that may indicate tampering or fraud, confirming that the person presenting the document is its rightful owner.

4 Key Benefits of Biometric Integration in MRZ Systems

The integration of biometrics with MRZ data verification brings several significant enhancements to the security and operational procedures of identity verification:

1. Amplified Security Through Embedded Chip Access

The integration of biometrics into MRZ verification involves a detailed and secure process that begins the moment a biometric document is presented at a checkpoint, providing a higher level of security compared to traditional verification methods.

  • Embedded Chip Access: Biometric passports and similar documents utilize MRZ as a gateway to access encrypted biometric data stored on an embedded NFC or RFID chip. This advanced security feature ensures that sensitive data, such as facial images, fingerprints, or iris patterns, remains protected from unauthorized access.
  • Matching Process: The real-time biometric data captured at checkpoints is matched against the profiles stored on the chip. This verification is crucial for detecting any discrepancies that may indicate tampering or fraud, confirming that the person presenting the document is its rightful owner.

2. Improved Accuracy with the Matching Process

The integration of biometrics in MRZ verification processes also significantly enhances the accuracy of identity checks.

  • Reliable Identity Confirmation: The biometric data retrieved from the embedded chip is compared in real-time with the biometric data captured live at the checkpoint. This comparison is crucial for confirming the authenticity of the document and verifying that it has not been tampered with.
  • Critical Verification Step: This matching process is vital for ensuring that the person presenting the document is indeed its legitimate owner. It is particularly effective in preventing cases where documents might be forged or altered, as the biometric data provides a unique, unfalsifiable identifier for the individual.

3. Enhanced Operational Efficiency

The use of biometric data in conjunction with MRZ not only increases security but also enhances the efficiency of the verification process, which is essential in high-traffic scenarios.

  • Streamlined Processing: Biometric systems allow for quicker data verification, which significantly speeds up the process of identity checks. This is particularly beneficial in busy international airports, where time efficiency is crucial to handling large volumes of passengers smoothly.
  • Less Reliance on Manual Checks: With reliable biometric verification, there is less need for time-consuming manual security checks, reducing overall wait times and improving the user experience at checkpoints.

4. Future-Proofing Identity Verification

The ongoing advancements in biometric and MRZ technologies ensure that this integrated approach stays relevant and effective against evolving security threats.

  • Adapting to New Challenges: Machine learning algorithms used in these systems continually learn and improve, helping them adapt to changes in biometric data over time and enhancing their ability to detect anomalies.
  • Robust Multi-factor Authentication: For added security, especially in sensitive environments, systems may require multiple biometric verifications alongside MRZ checks, forming a multi-factor authentication that is much harder to breach.

Biometric integration with MRZ systems fundamentally enhances the security, efficiency, and reliability of identity verification processes. This synergy not only fortifies defenses against fraud but also ensures a smoother and quicker process for verifying identities in various real-life applications, making it an invaluable asset in modern security protocols.

Where is MRZ Technology Used?

The Machine Readable Zone (MRZ) is a key feature in identity verification systems used across various sectors. Its practical applications extend far beyond passport control at airports, touching on areas such as banking, hospitality, and law enforcement. This section outlines the diverse ways in which MRZ technology is deployed, demonstrating its importance in everyday operations and its role in enhancing security and operational efficiency.

Travel and Immigration

One of the most prominent applications of MRZ technology is found in the realm of international travel and immigration.

  • Airports and Border Control: The primary application of the MRZ is in international travel and immigration control. It allows for the quick and automated reading of passport details at border control stations, speeding up the processing of travelers and reducing human errors. Immigration officers use MRZ readers to scan the passport, verify the authenticity of the document, and automatically fill entry/exit forms with the traveler's data.

Law Enforcement and Security

MRZ technology is also instrumental in law enforcement and security applications, where accurate identity verification is paramount.

  • Identity Checks: Police and security agencies use portable MRZ scanners to verify identity documents on the spot, which is vital in combating identity theft and ensuring public safety.
  • Fraud Prevention: The accuracy of MRZ verification in detecting forged or tampered documents is vital for law enforcement efforts to prevent and investigate identity-related fraud.

Financial Sector

MRZ technology is not just limited to travel; it has significant applications in the banking and financial industry as well.

  • Identity Verification in Banking: Banks use MRZ technology to verify identity documents when opening new accounts or conducting transactions that require heightened security. This helps in adhering to Know Your Customer (KYC) and anti-money laundering (AML) regulations.

Hospitality and Rental Services

The hospitality industry, including hotels and car rental services, leverages MRZ technology to enhance customer service and security.

  • Hotel Guest Registration: Hotels use MRZ technology to automate the check-in process, quickly registering guests by scanning their passports or ID cards.
  • Car Rental Check-Outs: Car rental companies use MRZ scanners to verify customer identities and driving license information, streamlining the rental process and enhancing security.

Healthcare Sector

In healthcare, MRZ technology assists in patient registration and identity verification, which are crucial for both security and administrative efficiency.

  • Patient Registration: Hospitals and clinics use MRZ scanners to quickly capture patient information from ID cards or passports, ensuring accurate patient records and reducing registration times.

MRZ technology, with its ability to quickly and accurately verify identity and document authenticity, is an invaluable asset in numerous sectors. Its broad application spectrum demonstrates its versatility and fundamental role in modern security and data verification frameworks, making it an integral part of contemporary digital verification systems.


The Machine Readable Zone (MRZ) represents a pivotal role in the domain of identity verification. Through its integration into various types of identity documents and machine readable travel documents, the MRZ has fundamentally transformed the landscape of document verification. With the use of robust MRZ recognition technology, the MRZ code ensures that every document holder, be it a passport holder or an ID card carrier, is swiftly and securely processed at control points across the globe.

The MRZ's capacity to streamline the identity verification process is evident across a broad spectrum of applications—from enhancing airport security to facilitating quick check-ins at hotels. In each scenario, the visual inspection zone of a passport or any other identity document is automatically and efficiently analyzed, ensuring that the machine readable documents conform to international standards and are free from tampering or forgery.

Moreover, the integration of biometric verification technologies with MRZ systems has reinforced the security measures, allowing for a more refined and reliable validation of document holders. This synergistic approach not only heightens the accuracy of identity checks but also amplifies the security, reducing the dependency on manual checks and significantly speeding up processing times.

As we move forward, the continuous advancements in MRZ technology promise to further bolster the effectiveness of public and private security measures. With increasingly sophisticated algorithms and machine learning capabilities, robust MRZ recognition technology will continue to play a crucial role in the evolution of security practices worldwide. Machine readable passports, ID cards, and other identity documents equipped with an MRZ ensure a higher standard of identity verification, underscoring the indispensable value of this technology in our interconnected and mobile world.

In conclusion, the Machine Readable Zone is more than just a security feature; it is a cornerstone of modern identity verification, vital for ensuring the integrity and reliability of the identity documents that facilitate our daily transactions and international travels. As such, the MRZ remains a key asset in the ongoing effort to secure and streamline identity verification processes across the globe.
